Authentication

The Authentication section allows you to enforce OAuth 2.0 based access control for an individual service in Connect.

When enabled, incoming API requests must present a valid OAuth2 access token issued by Identity.

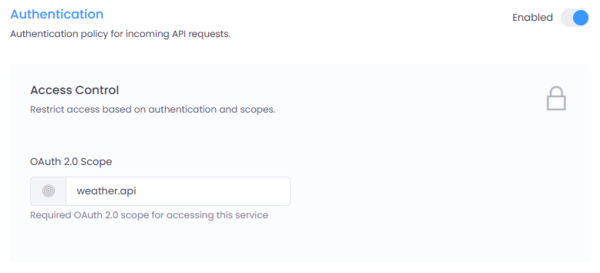

Authentication configuration screen showing service scopes

Figure 1: Authentication configuration interface in Connect.

Where to Configure​

Navigate to:

Service → Settings → Authentication

Click the Enabled toggle to activate authentication for the selected service.

How It Works​

Connect validates:

  1. The access token issued by Identity
  2. The OAuth2 client making the request
  3. The required OAuth2 scopes configured for the service

If validation fails, the request is rejected with an appropriate HTTP status (typically 401 or 403).

OAuth 2.0 Clients (Configured in Identity)​

Authentication is based on OAuth2 clients created in Identity.

Best Practice​

It is strongly recommended to:

  • Create a separate OAuth2 client per application
  • Avoid sharing client credentials across multiple applications
  • Assign only the required scopes to each client

This improves: - Security isolation - Auditability - Revocation control - Scope-based access management

Each client will authenticate using OAuth2 (e.g., Client Credentials flow) to obtain an access token.

OAuth 2.0 Scopes​

The scope configured in this screen is an OAuth2 scope defined in Identity.

Scopes determine what the client is allowed to access.

Gateway Scope​

All clients connecting to Connect must have:

connect.gateway

This scope authorizes access to the API Gateway itself.

Service Type Scopes​

Depending on the microservice type, additional scopes are required.

REST API Services​

If the microservice type is REST API, the client must have:

connect.gateway connect.restapi <service-specific-scope>

Example:

To access a REST service with scope:

weather.api

The client must be granted:

connect.gateway connect.restapi weather.api

Data API Services​

If the microservice type is Data API, the client must have:

connect.gateway connect.dataapi <service-specific-scope>

Example:

To access a Data service with scope:

customer.read

The client must be granted:

connect.gateway connect.dataapi customer.read

Scope Configuration in This Screen​

The OAuth 2.0 Scope field defines the service-specific scope required to access this service.

When configured:

  • Connect verifies the access token contains:
    • connect.gateway
    • The service-type scope (connect.restapi or connect.dataapi)
    • The configured service scope

If any required scope is missing, access is denied.

Security Best Practices​

  • Create one OAuth2 client per consuming application.
  • Use the Client Credentials flow for machine-to-machine communication.
  • Assign only necessary scopes (principle of least privilege).
  • Rotate client secrets periodically.
  • Avoid using wildcard or overly broad scopes.

Summary​

Authentication in Connect is enforced using OAuth2 tokens issued by Identity.

Access requires:

  1. A valid OAuth2 client
  2. Gateway-level authorization (connect.gateway)
  3. Service-type authorization (connect.restapi or connect.dataapi)
  4. The specific service scope

This layered scope model ensures secure, structured, and fine-grained access control for all services exposed through Connect.
